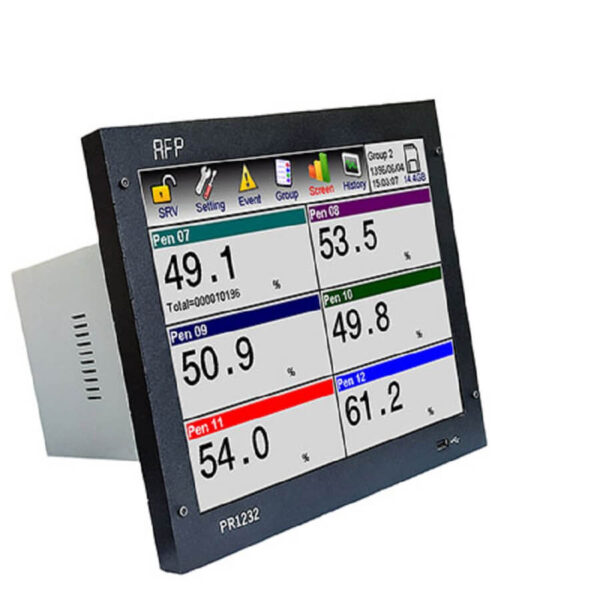

رکوردر بدون کاغذ PR1232
- نمایشگر لمسی 12.1 اینچی رنگی با صفحه تاچ مقاومتی
- تا 48 ورودی یونیورسال 16 بیتی
- تا 24 رله کنتاکت خروجی قابل برنامه ریزی
- تغذیه 240~100 ولت AV یا 24 ولت DC
- طراحی شده در سایز 290mm*240mm*200mm
TECHNICAL DATA
Mathematical formula defined by user | Calculations |
Measurement archives; daily data logging structure with a very large database size | Data logging |
1USB interface on the front panel for parameterization and servicing purposes serial interfaces (RS485) | Data communication |
MODBUS ASCII/RTU | Serial communication |
MODBUS/TCP | Ethernet communication |
Up to 48 universal signal inputs (TC, RTD, mA, V, Frequency), full isolated, 16-bit ADC, 1 sample/sec | Inputs |
Up to 24 Relay (3A-24VDC, 3A-120VAC) or SSR | Outputs |
12.1inch full-color wide screen display with 800*600 pixels with LED backlight Operation:touch screen display | Display |
ARM CORTEX·M4 dual processor 32-bit at 120 MHz; 64MB RAM; min. 16GB flash memory | Hardware architecture |
24V DC +/- 20"-", power consumption up to 15 w OR AC 100 to 240 V +10/-15%,50/60 Hz | Power supply |
20°C to +50°C- | Operating temperature range |
290mm*240mm * 200mm, Panel mounted | Dimension |

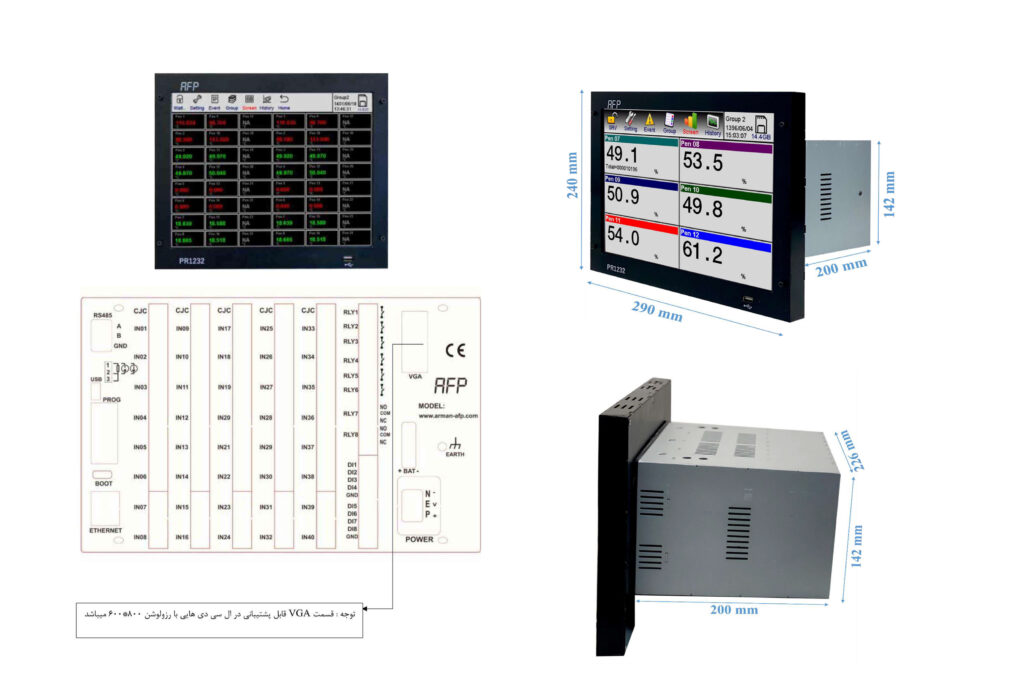

MECHANICAL DETAIL
