Smart Digital AC Transducer SDI125

Input: AC current input (Input current 0-5 A)(Burden <0.04 to <0.25 VA )(Frequency 50Hz )
Output: 4–20 mA current output
Serial communication via RS-232

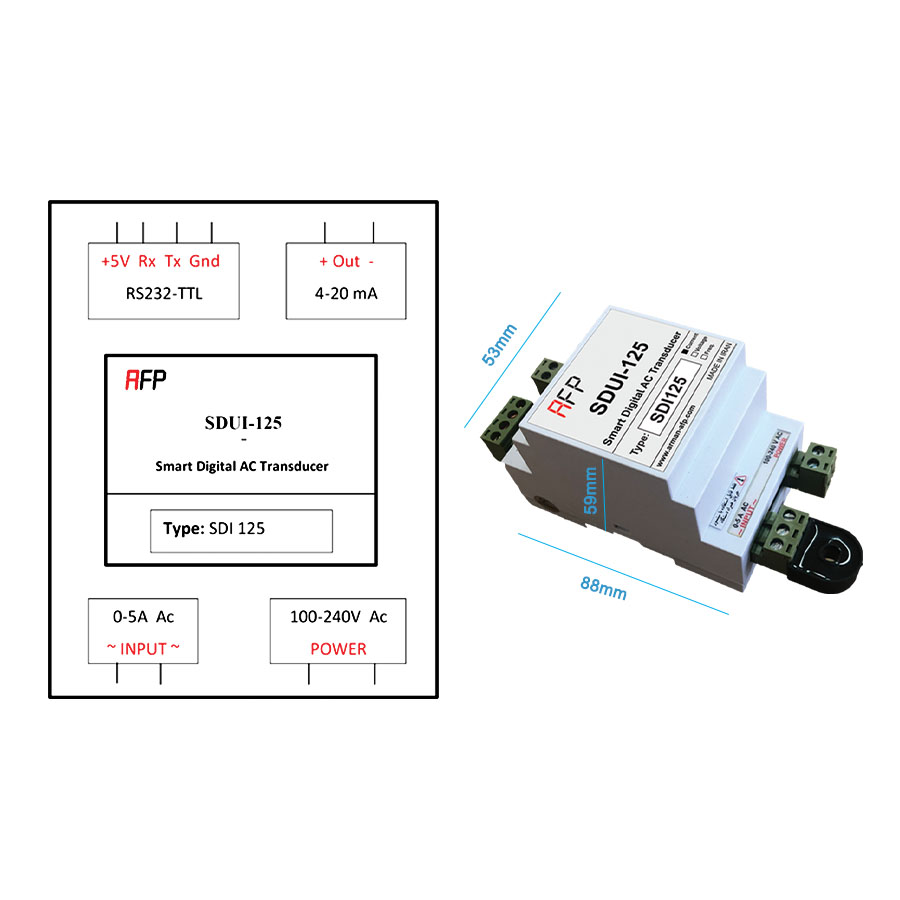

Standard enclosure, dimensions: 88 mm × 53 mm × 59 mm

Description

Accuracy class	0.5
Non-linearity	0.2%>
Load dependence	0.05%>
Response time	300ms>
Auxiliary supply dependence	0.1%> ±20%
Temperature coefficient	0.1%> 10°C
Max open circuit output voltage	20V
Max output signal by overload	120%
